LOUD AND CLEAR
Gaugex Raw
Streaming LUFS Meter
"A dead-simple free LUFS meter — big integrated readout, one-tap streaming target, and an on-target light. Match your master to any platform."
WHAT IT DOES

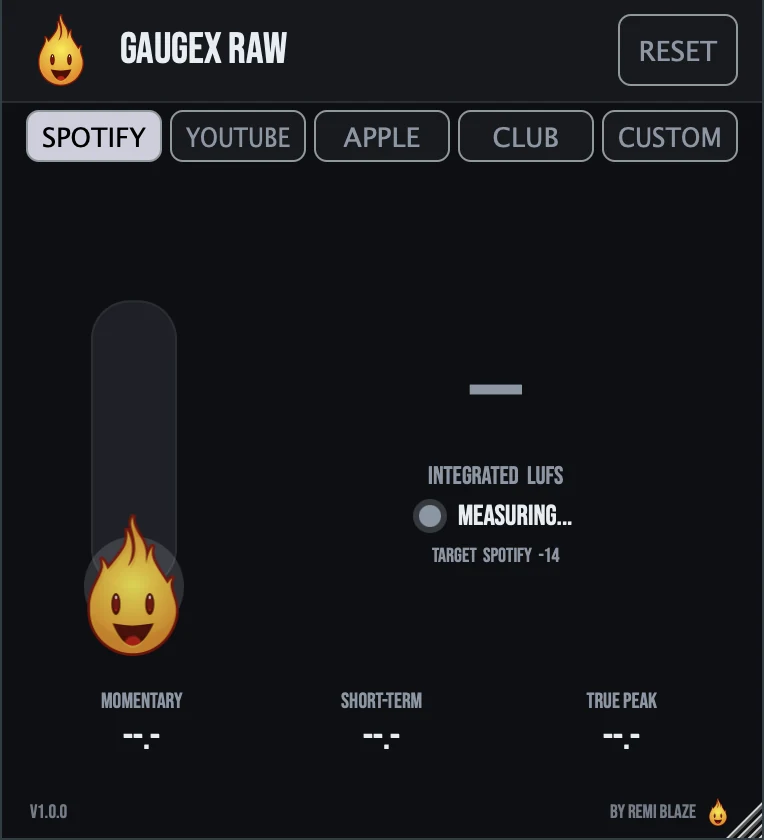

Stop guessing whether your master is loud enough. Gaugex Raw is a dead-simple free streaming loudness meter: pick your target platform, then watch a big integrated LUFS readout and a green/amber/red on-target light tell you exactly when you've landed. Built on the ITU-R BS.1770-4 / EBU R128 standard, with small secondary readouts for momentary, short-term, and true peak — and a Fire Head needle that rides your loudness in real time.
It measures only. Your audio passes through bit-transparent with zero added latency, so you can leave it inserted anywhere in your chain without touching your sound or your timing.
THE TARGET SELECTOR
The one control is the TARGET — pick Spotify -14, YouTube -14, Apple Music -16, Club/CD -9, or set a Custom value (anywhere from -24 to -6 LUFS). The on-target light glows green when your integrated loudness is within ±1.0 LU, amber within 3 LU, and red beyond that — with a live delta telling you exactly how many LU you are from the goal. A Reset button clears the integrated measurement so you can start a fresh reading.
UNDER THE HOOD
Measure-only, bit-transparent — the audio buffer is never written, so your signal passes through completely unchanged.
Zero latency — Gaugex Raw reports zero latency to the host, so it can sit anywhere in your chain without affecting playback or timing.
BS.1770-4 K-weighting — a two-stage K-weighting filter feeds the LUFS integrators, with gated integrated loudness using the standard -70 LUFS absolute and -10 LU relative gates.
True-peak oversampling — a 4x oversampler measures inter-sample peaks read-only, so the dry signal stays bit-transparent while catching peaks a normal sample meter misses.
Real-time-safe — denormals are disabled in the audio thread and no allocations happen on the audio path, with headroom pre-allocated in prepareToPlay.
INSTALL IN 30 SECONDS
DOWNLOAD THE .PKG
Click Download Free above. Double-click the .pkg file to run the installer.
CHOOSE YOUR FORMATS
The installer lets you pick AU (Logic, GarageBand, Ableton), VST3 (Ableton, Reaper, Bitwig, FL Studio), and the Standalone app. Install takes a few seconds.
OPEN YOUR DAW
Restart your DAW and rescan plugins. Find Gaugex Raw under Remi Blaze in your plugin list.
UPGRADE TO GAUGEX
Need the full picture? Gaugex Pro goes deeper.
The Pro version adds LRA and loudness range, RMS, PLR/crest factor, phase correlation and mono-compatibility, a spectrum analyzer, a 60-second history graph, gain trim with Match and A/B, mastering log/CSV export, and 15 factory presets.
FREQUENTLY ASKED QUESTIONS
Yes. Gaugex Raw is completely free — freeware, no trial, no nag screens, no expiration.
Integrated LUFS is the hero readout, with an on-target light that turns green when you land within tolerance of your chosen streaming target. Small secondary readouts show momentary (400 ms), short-term (3 s), and true peak (dBTP, 4x oversampled).
No. Gaugex Raw is a bit-transparent, zero-latency passthrough — it measures a copy of your signal and never alters the audio. It never limits or clips; the true-peak readout warns you visually, it does not touch the sound.
Gaugex Raw gives you the single metric most people need — integrated LUFS versus a streaming target — plus three secondary readouts. The full Gaugex adds LRA, RMS, PLR/crest, phase correlation and mono-compat, a spectrum analyzer, a 60-second history graph, gain trim with Match and A/B, mastering log/CSV export, and 15 factory presets.
Yes. Gaugex Raw is a Universal Binary that runs natively on Apple Silicon (M1/M2/M3/M4) and Intel Macs.
Gaugex Raw ships as AU, VST3, and a Standalone app for macOS, as a Universal Binary for Apple Silicon and Intel. It runs in any AU or VST3 host — Ableton Live, Logic Pro, FL Studio, Cubase, Reaper, Bitwig and more.
No. Gaugex Raw reports zero latency to the host, so it can sit anywhere in your chain without affecting playback or timing. It measures a copy of your signal and passes the audio through untouched.
GET THE REST FREE
Gaugex Raw is part of the Blaze Essentials pack — free plugins for every producer. Grab them all.
View Blaze Essentials
